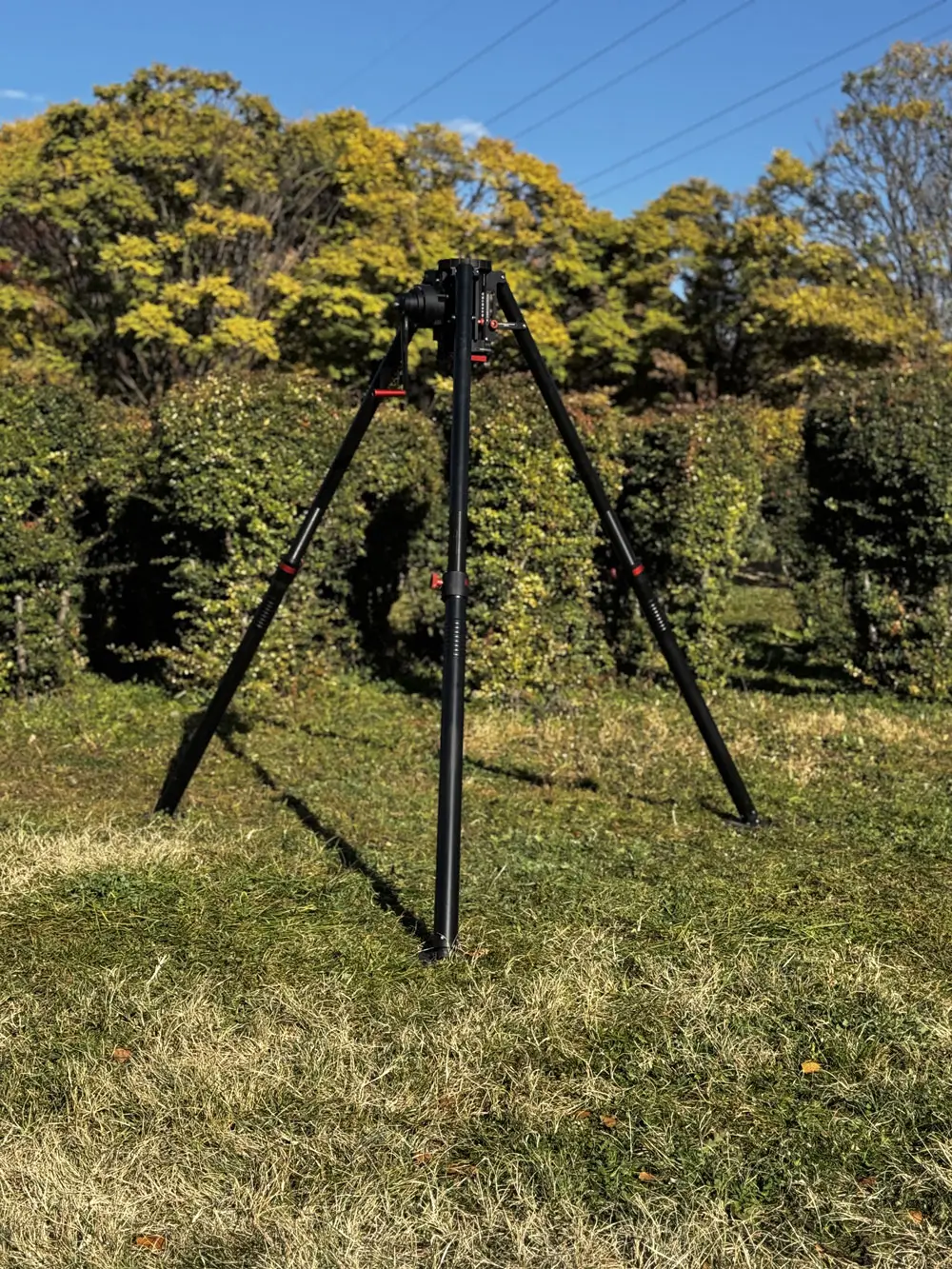

The MMT20 is a versatile, heavy-duty mast system designed for rapid deployment in tactical and commercial settings. Featuring a lightweight tripod and expandable height via crane-assisted nodes, it supports heavy payloads while ensuring stable performance in various environments.
Distinctive Features

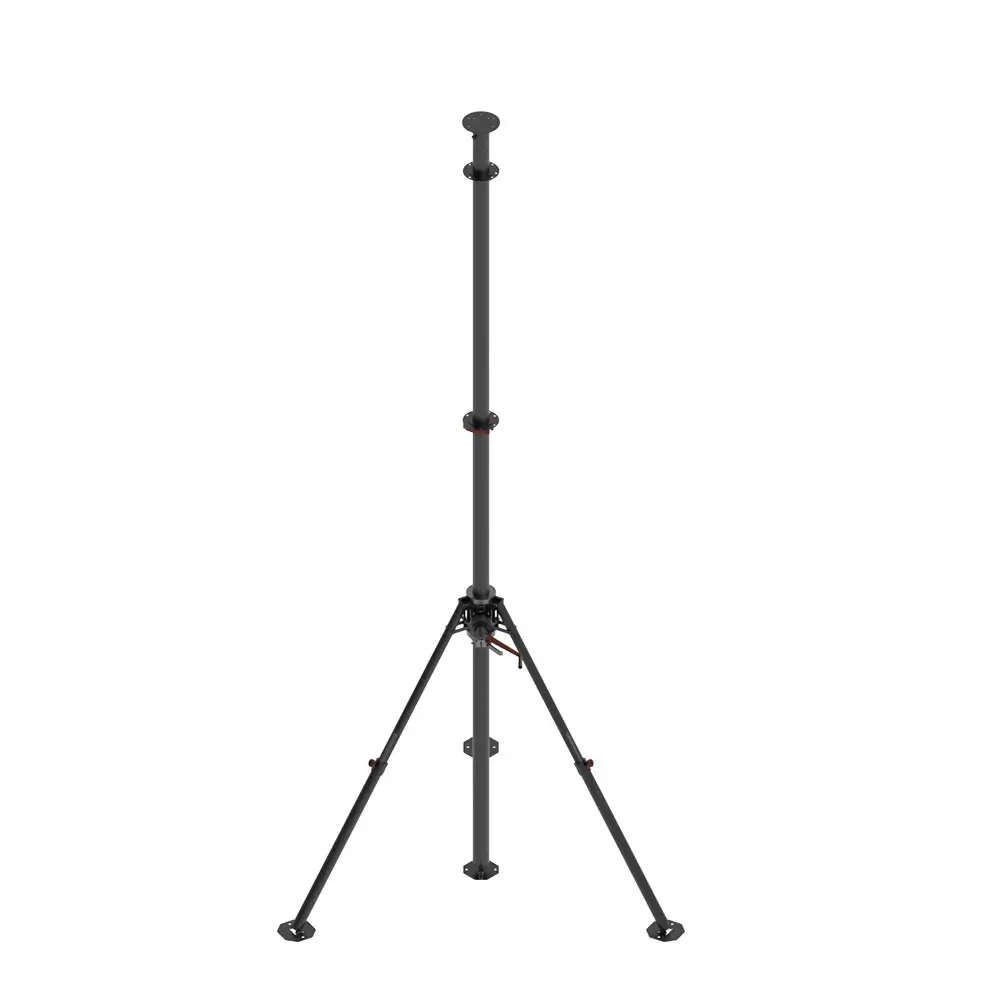

Adaptable Height Expansion: Similar to the MMT10, the MMT20 mast units offer the unique ability to increase height by adding nodes using the crane arm on the tripod’s main body. This expandable design allows the MMT20 to transform from a compact nested length to an extended 15-meter open position
Heavy Payload Capability: The mast system is specifically designed to accommodate heavy-class payloads, thanks to its reinforced body structure.
Effortless Single-Person Installation: Following the legacy of the MMT10, the MMT20 maintains the multi-purpose portable mast architecture that can be quickly and easily installed by a single person.

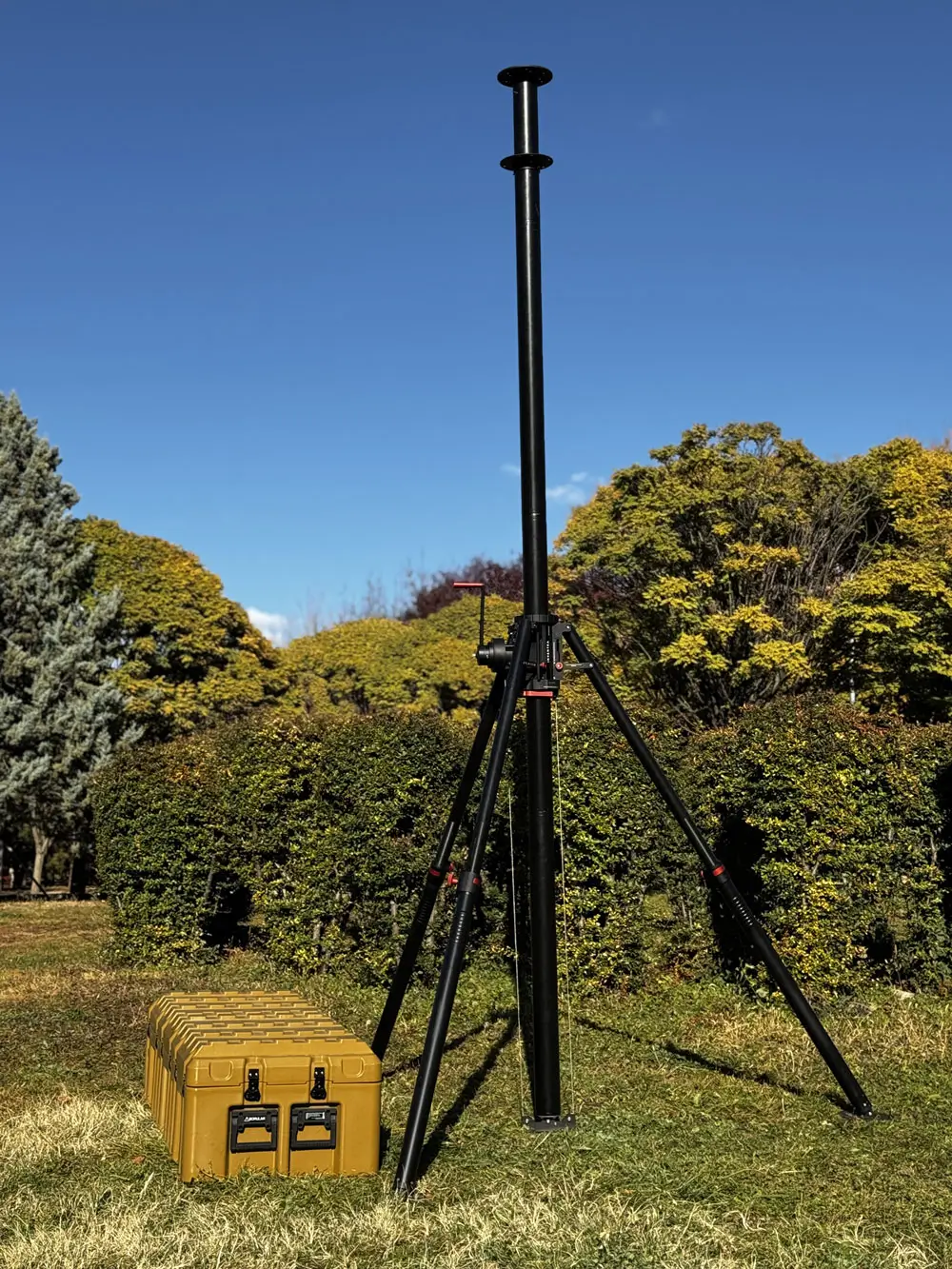

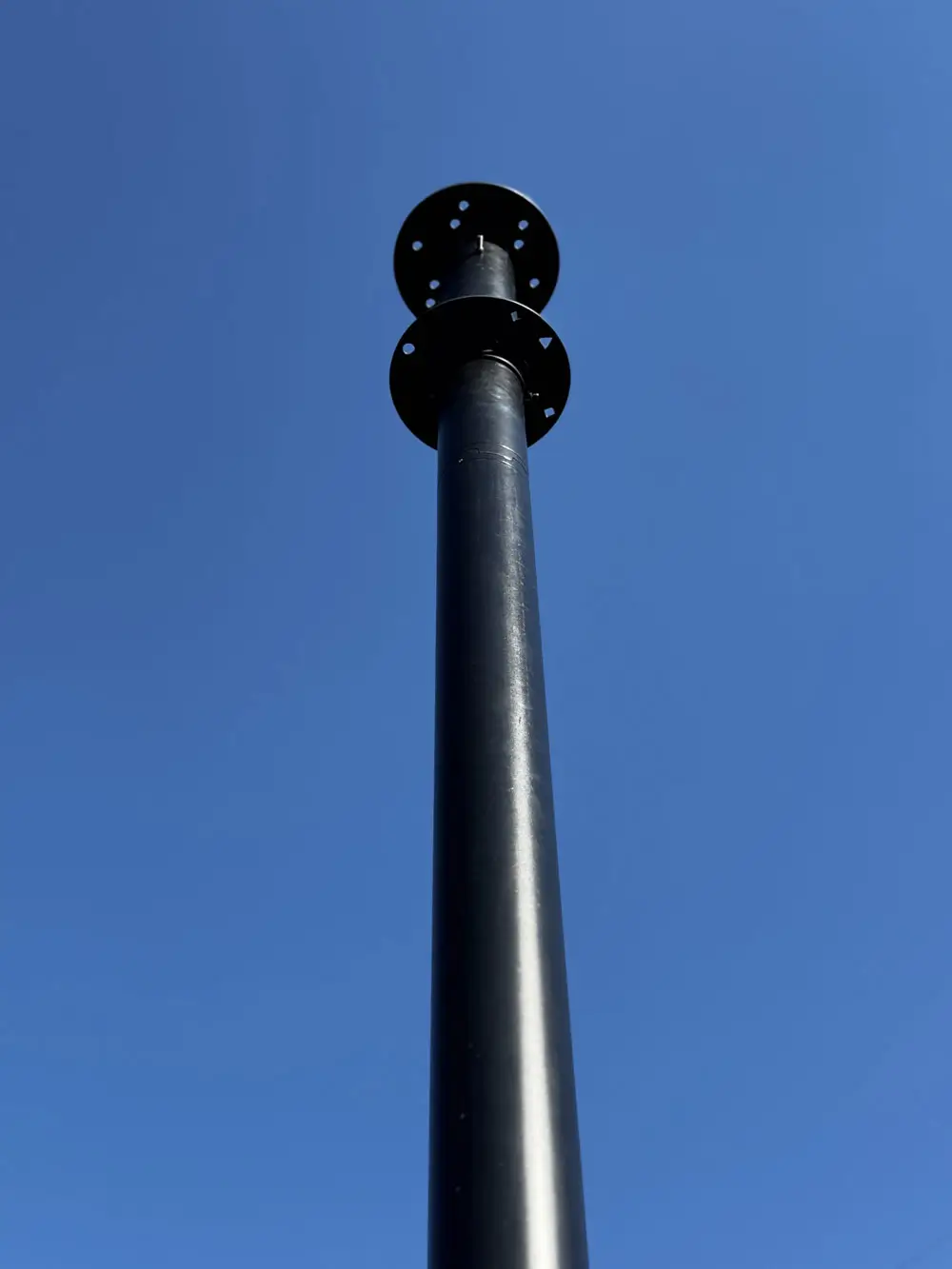

A. Extends to 15 Meters

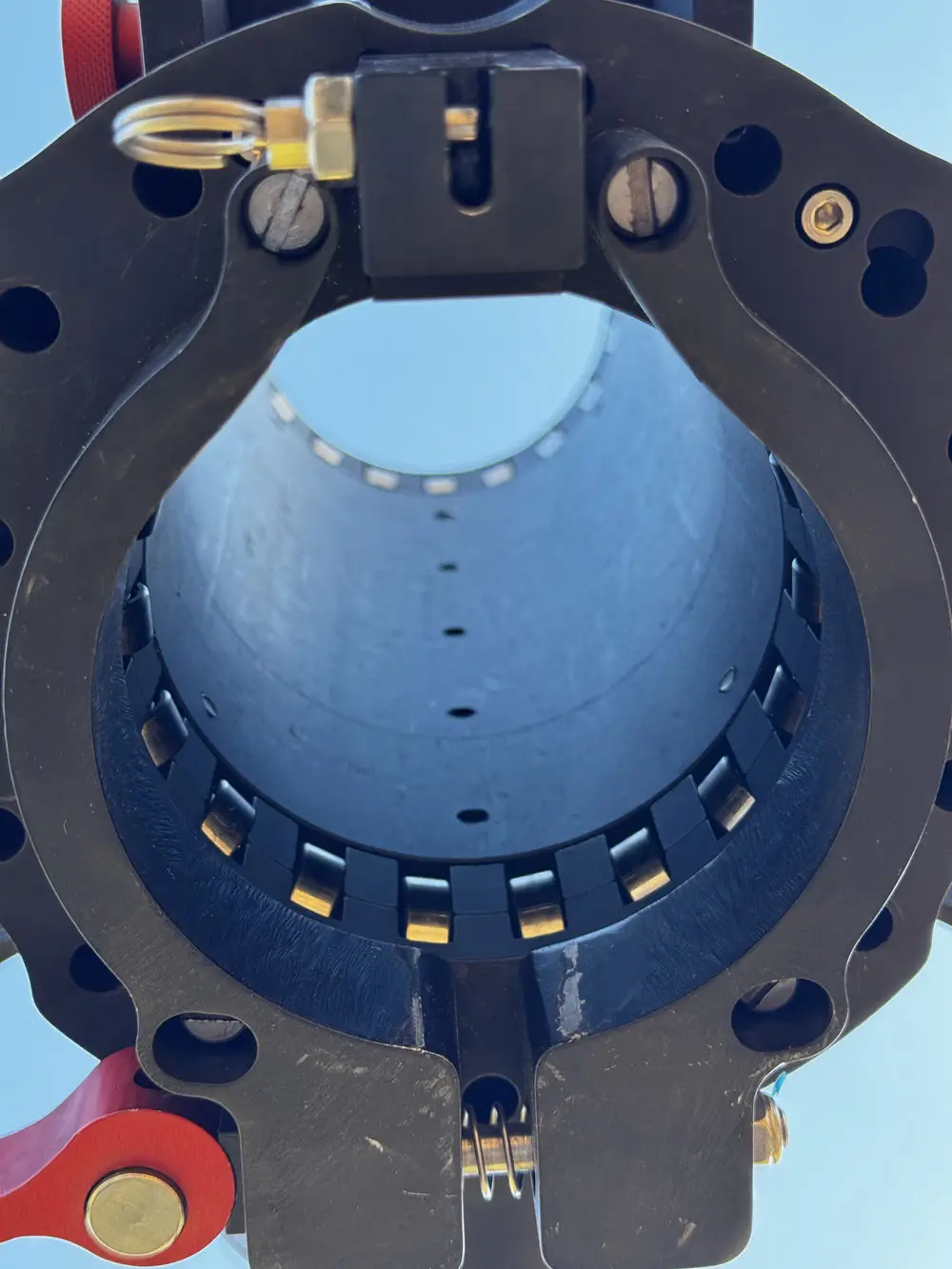

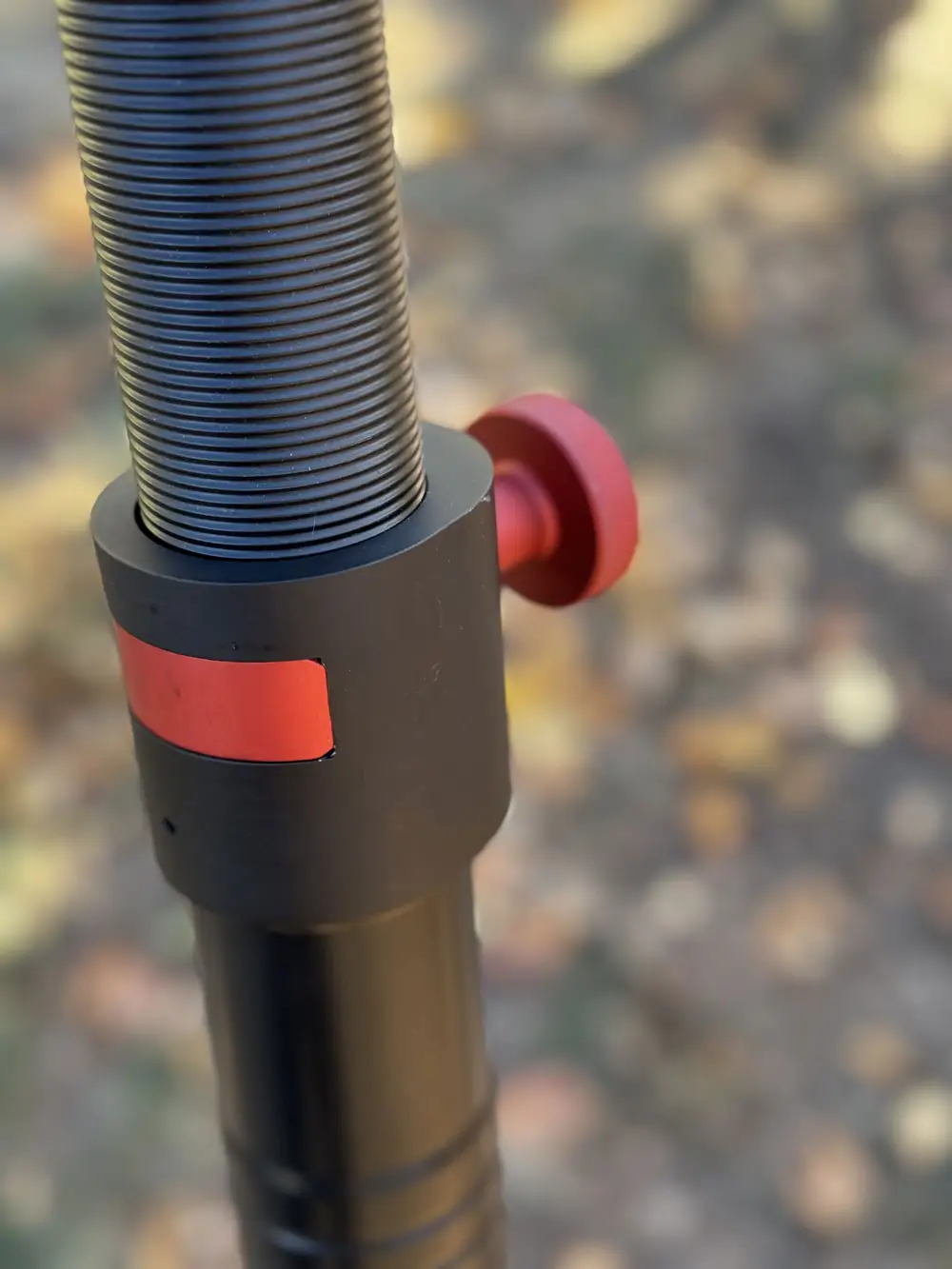

B. Cam Lock System and Color-Coded Guy Rings

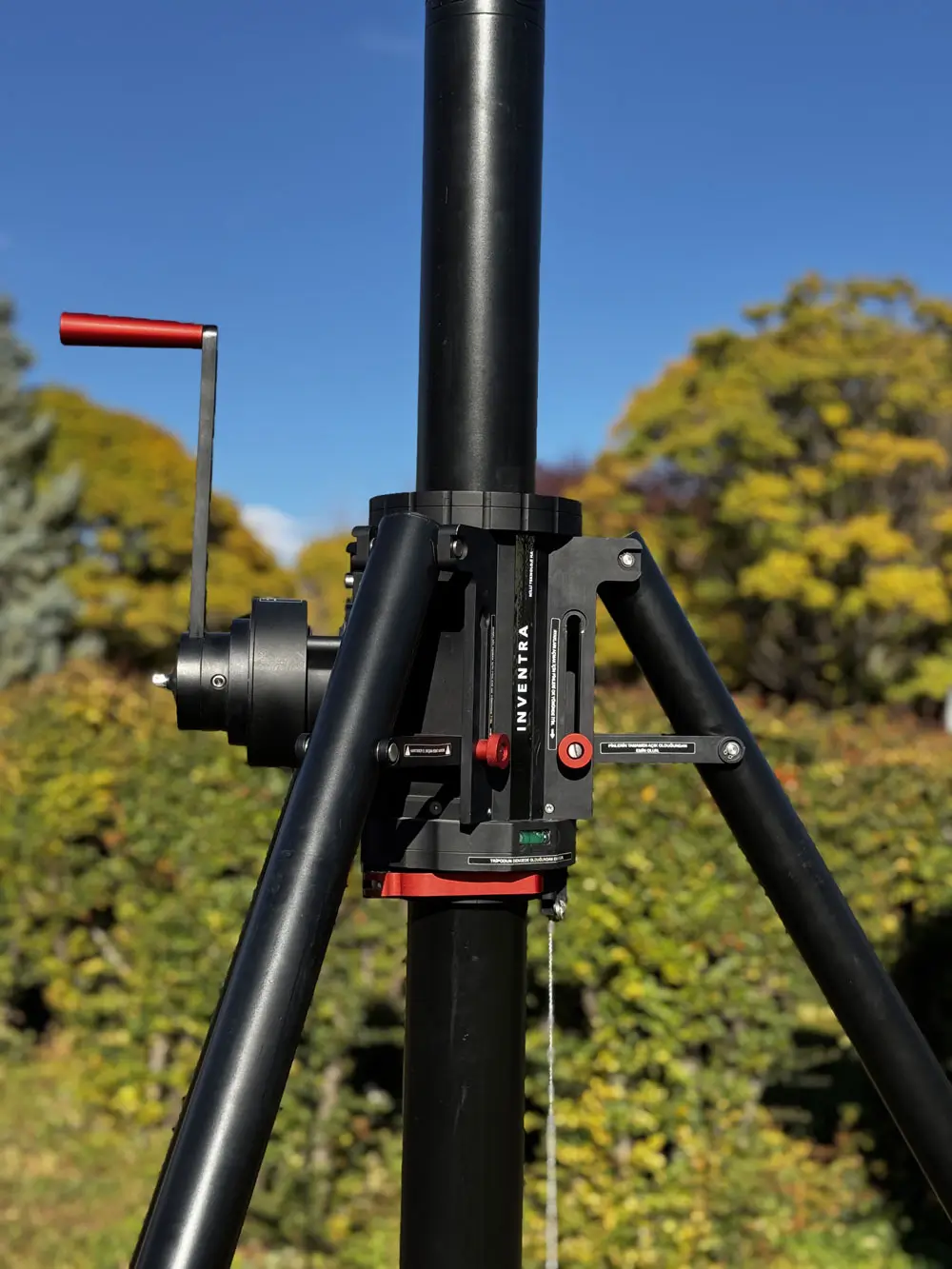

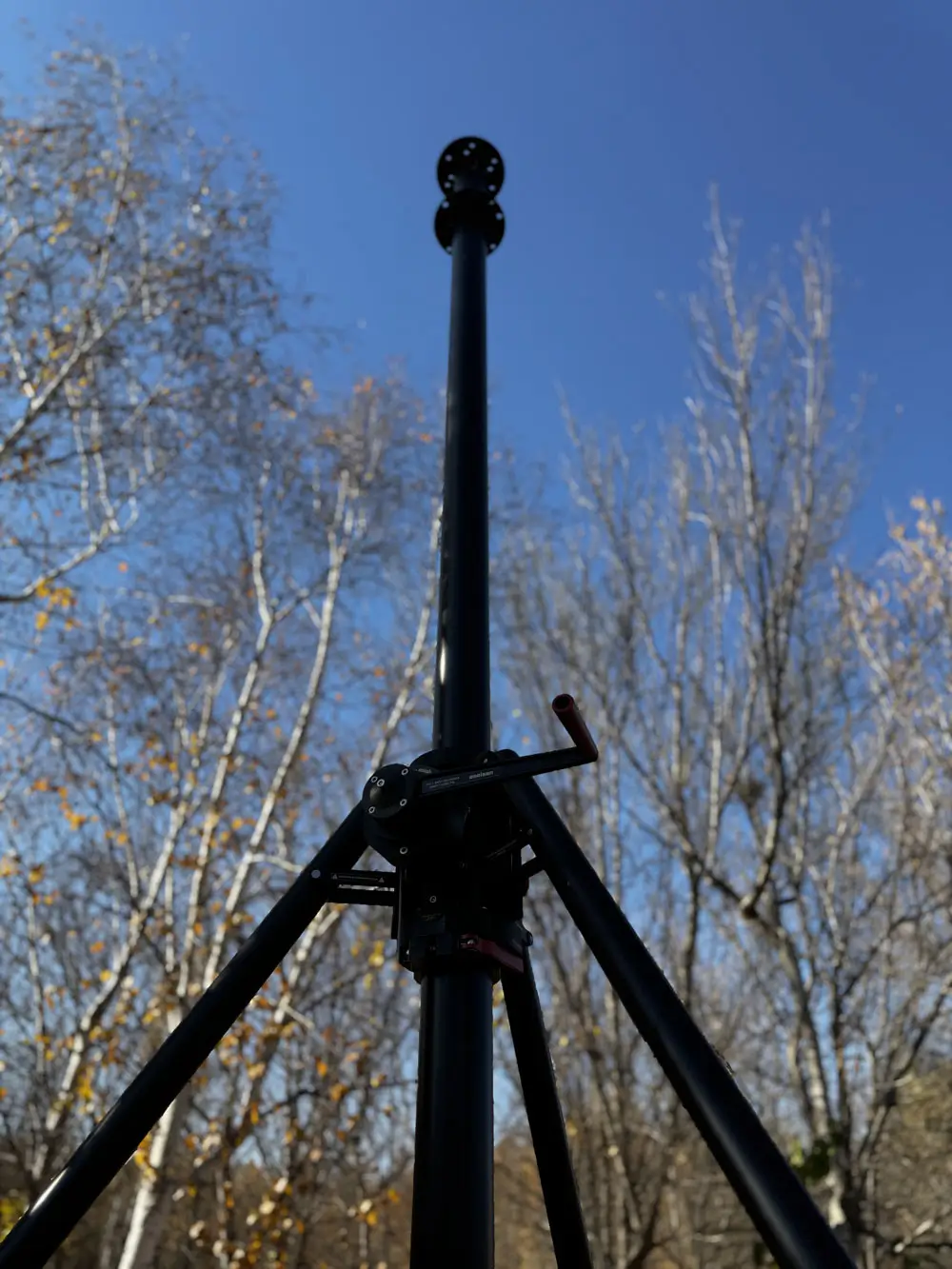

C. Crane-Assisted Height Expansion

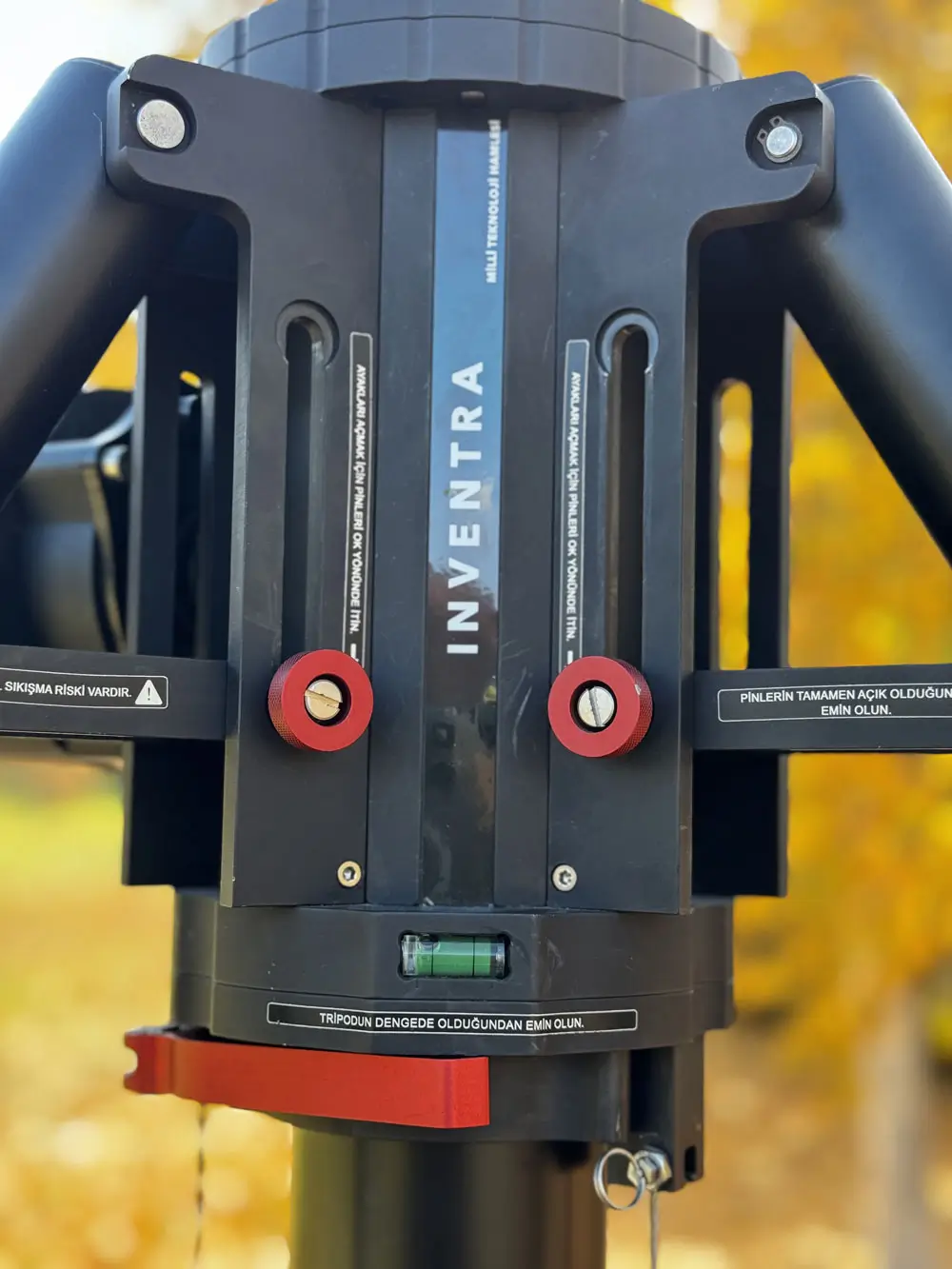

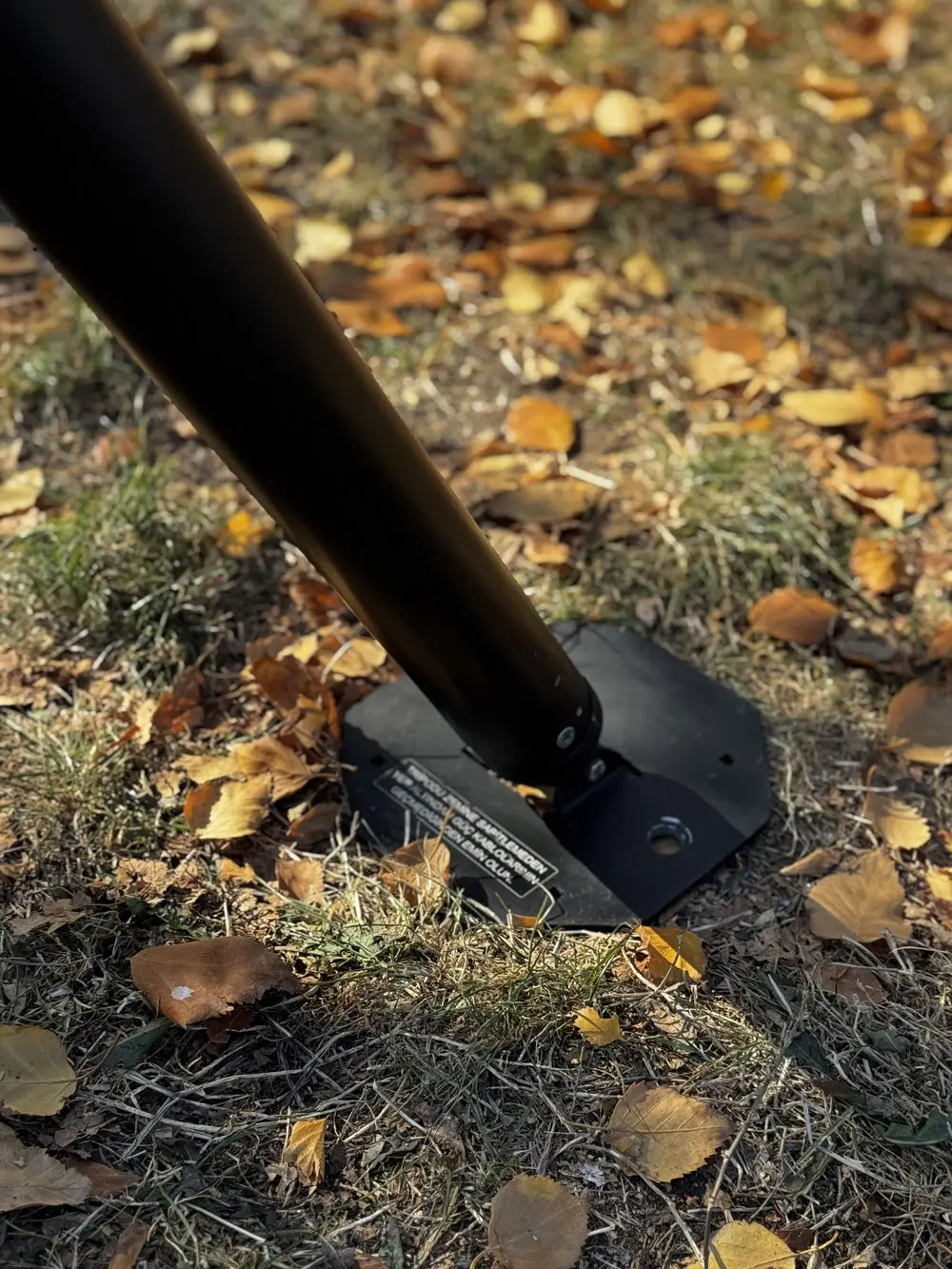

D. Ground Anchor and Pinning Capability
Specifications
| Parameters | MMT20-1400-XX-XX |
| Retracted Height (mm) | 1400 |
| Extended Height (mm) | 2000 to 15000 |
| Rated Payload Capacity (kg) | 35 to 90 |
| Weight (Mast & Tripod) (kg) | 32 to 92 |
| Number of Sections | 2 to 15 |
| Wind Load (km/h) | 120 |
| Reverse Drive | Available with Self-Locking |
| Actuating Mechanism | Manual Push or Cable Driven |
| External Paint | RAL 9005 MATTE Black Electrostatic Powder Coating |
| Base Diameter (ØB) (mm) | 1900 |
| Deployment Time (min) | 5-30min Between (Depends on Number of Section) |
| IP Rating | IP65 |
| Material | Main Body: Aluminum 6XXX Series
Connection Part: Stainless Steel Material Stakes and Other Lower Components: Stainless Steel – Carbon Steel |
| Guy Kits | 8 Straight Stake
4-16 Flat Stake 4-16 Guying rope |
| Accessories | Wheeled Carry Bag

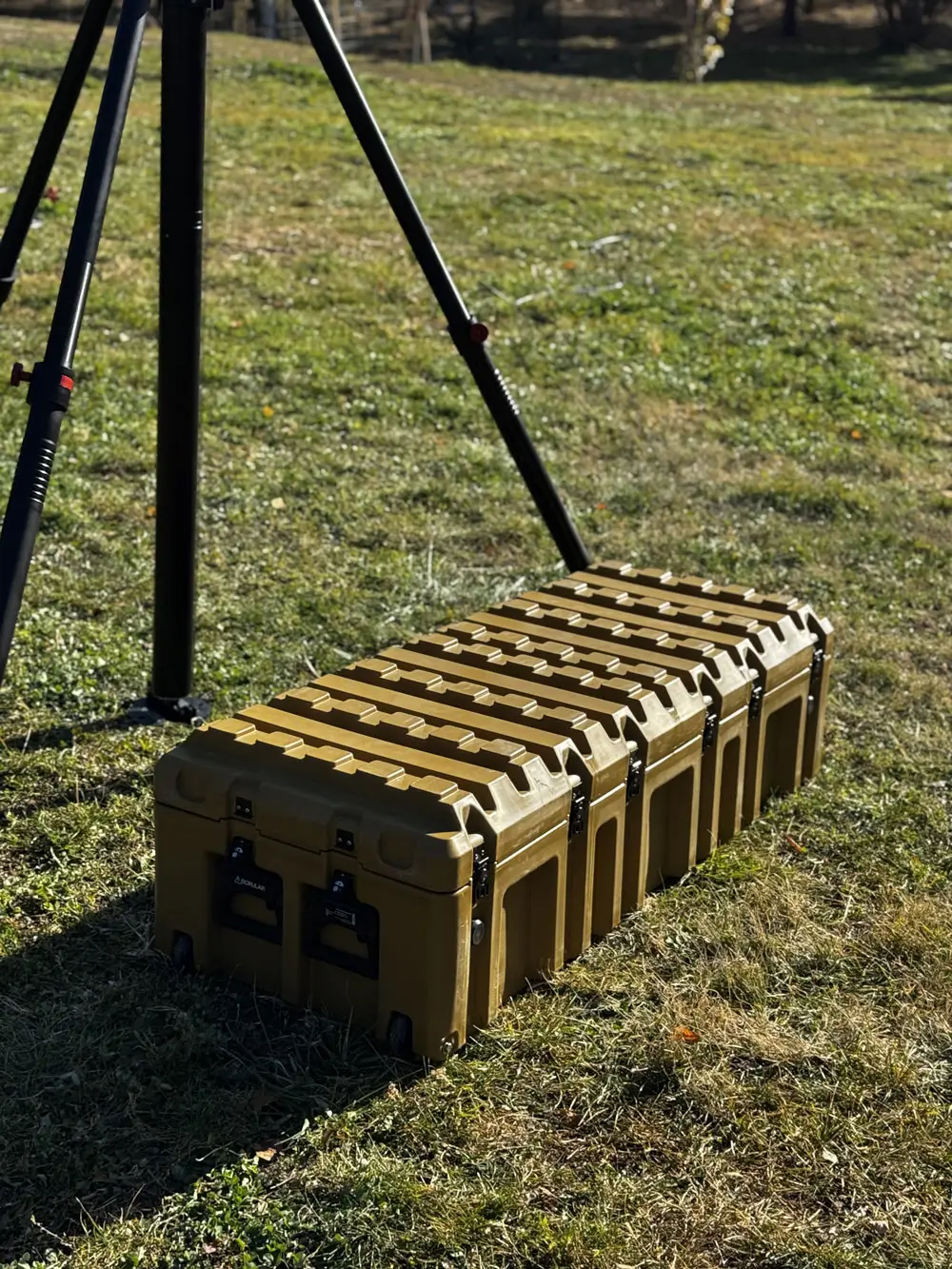

Accessory Bag Antenna Mounting Adapter Hammer Stake Extractor |
| Temperature (°C) | MIL-STD-810G, Method 502.5 Procedure II – Operational, -40°C
MIL-STD-810G, Method 501.5 Procedure II – Operational, +60°C |
| Vibration | MIL-STD-810G, Method 514.6 Procedure I Category 20, Figure 514.6C-3 |
| Shock | MIL-STD-810G, Method 516.6 Procedure I – Functional Shock; 20g 11ms |
| Rain | MIL-STD-810G, Method 506.5 Procedure I – Rain and Blowing Rain, 1.7 mm/h |
| Humidity | MIL-STD-810G, Method 507.5 Procedure I; %90 Noncondensing |
| Salt Fog | MIL-STD-810G, Method 510.5 Procedure I – Blowing Dusts
MIL-STD-810G, Method 510.5 Procedure II – Blowing Sand |
*Refer to Datasheet
Ordering Information
| Configuration Breakdown | Mast – Manual – Actuating System (Tripod) – Product Class (20) – Retracted Height (mm) – Extended Height (mm) – Rated Payload Capacity (kg) – Product Specific Codes |
| Part Number | MMT20-1400-X-X (Check Available Options Below) |
| Available Customizations | Retracted/Extended Height, Payload Capacity, Mechanical Interfaces |
| Combinable Platforms | PEX – Electromechanical Positioners Family
PMX – Manual Positioners Family |
