Description
Main Features

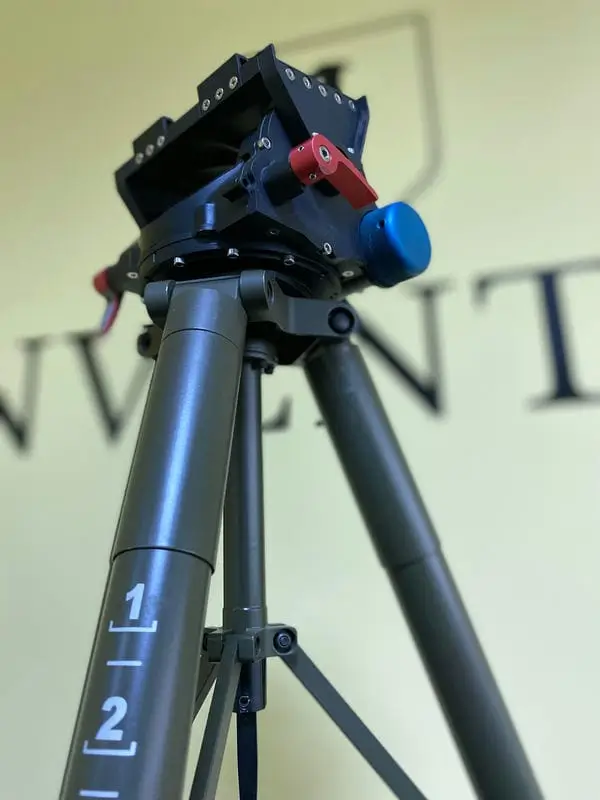

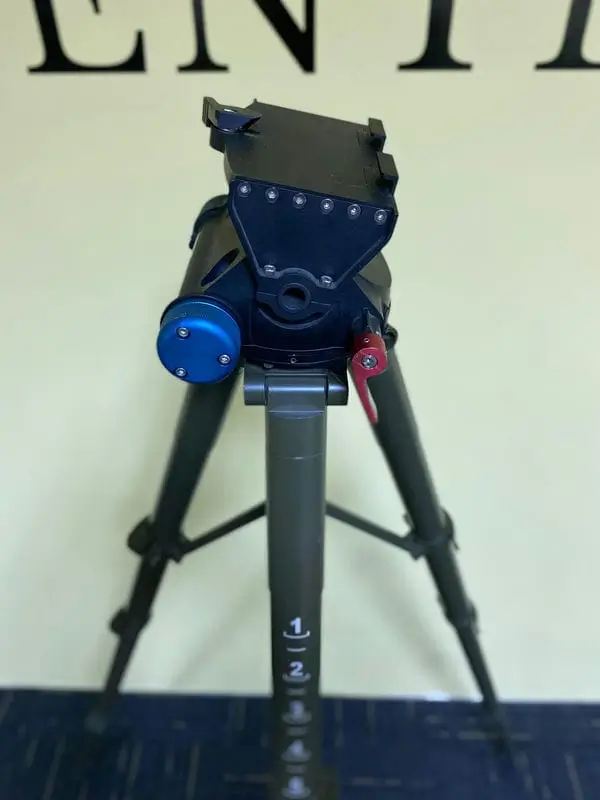

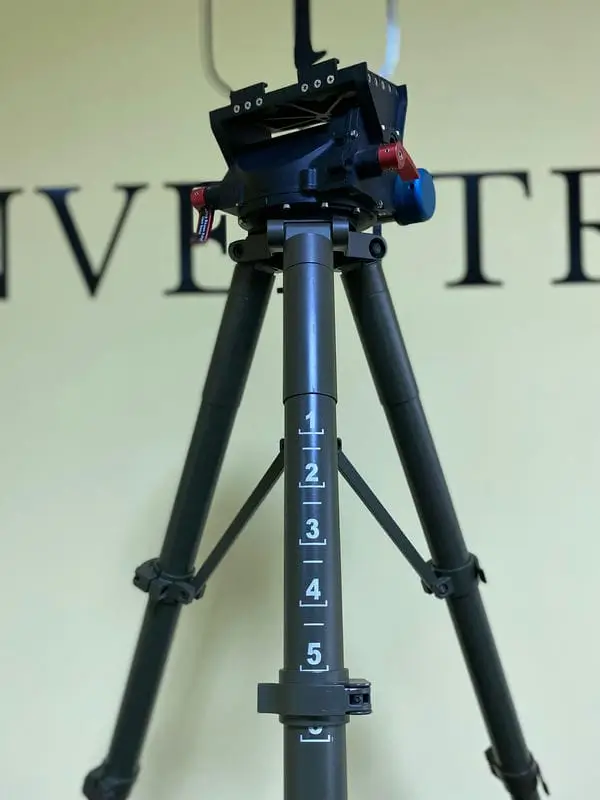

PEG01 Digital Goniometer ensures accurate line-of-sight measurements, perfect for mission-critical surveillance and target acquisition tasks. It features fine pan/tilt adjustment mechanisms and operates with high-resolution encoders for exceptional precision. Ideal for man-portable deployments, its compact design suits versatile field needs.
Distinctive Features
High-Resolution Encoders: Provides precise angular measurements of 0.056°, ensuring superior alignment accuracy.
Selectable Payload Counterbalance: Ensures flexibility in payloads up to 12 kg for varying missions.
Independent Fine Adjustment: Mechanisms in pan and tilt for exact sighting and continuous stability.
Low Power Consumption: Extends operational endurance, making it suitable for prolonged field use.
Digital Magnetic Compass Compatibility: Enhances navigation and directional accuracy during operations
A. Compact Design
B. Portable and Lightweight
C. High-Resolution Encoders
D. 0.0056° resolution
Specifications
| Parameters / Configurations | PEG01-12 | ||||
| Payload Capacity (kg) | 12 kg | ||||
| Pan Axis Range | n x 360° | ||||
| Tilt Axis Range | ±45° | ||||
| Axis Resolution (°) | 0.0056° (0.1 mil) on Both Axis | ||||
| Accuracy (°) | 0.056° (1 mil) on Both Axis | ||||
| Weight (kg) | <3.0 kg | ||||
| Independent Braking | Available on Both Axis | ||||
| Fine Adjustment Range (°) | ±0.8438° (15mil) on Both Axis | ||||
| Width (A) (mm) | 173 | ||||
| Depth (B) (mm) | 183 | ||||
| Height (C) (mm) | 115 | ||||
| Wind Load (km/h) | 120 | ||||
| IP Rating | IP65 | ||||
| Temperature (°C) | MIL-STD-810G, Method 502.5 Procedure II – Operational, -33°C
MIL-STD-810G, Method 501.5 Procedure II – Operational, +60°C MIL-STD-810G, Method 501.5 Procedure I – Storage; +70°C MIL-STD-810G, Method 502.5 Procedure I – Storage; -40°C |
||||
| Low Pressure | MIL-STD-810G, Method 500.5 Procedure I – Storage 37,000ft
MIL-STD-810G, Method 500.5 Procedure I – Operational 10500ft |
||||
| Vibration | MIL-STD-810G, Method 514.6 Procedure I Category 20, Figure 514.6C-3 | ||||
| Shock | MIL-STD-810G, Method 516.6 Functional Shock, 20G 11ms, XYZ Axis, 3 Positive and 3 Negative Each Axis | ||||
| Humidity | MIL-STD-810G, Method 507.5 Procedure I – %90 Noncondensing @60°C, 11 Days | ||||
| Rain | MIL-STD-810G, Method 506.5 Procedure II | ||||
| Salt Fog | MIL-STD-810G, Method 509.5, 2 Cycles of 24 Hours | ||||
| Dust and Sand | MIL-STD-810G, Method 510.5, Procedure I and Procedure II | ||||
*Refer to Datasheet
Ordering Information
| Configuration Breakdown | Positioner – Electromechanical – Goniometer –01 (Product Class) – Payload Capacity |
| Part Number | PEG01-12 |
| Available Customizations | Mechanical Interfaces |
| Combinable Platforms | TML10 – Ultra Lightweight Tripod |
