Description
Main Features

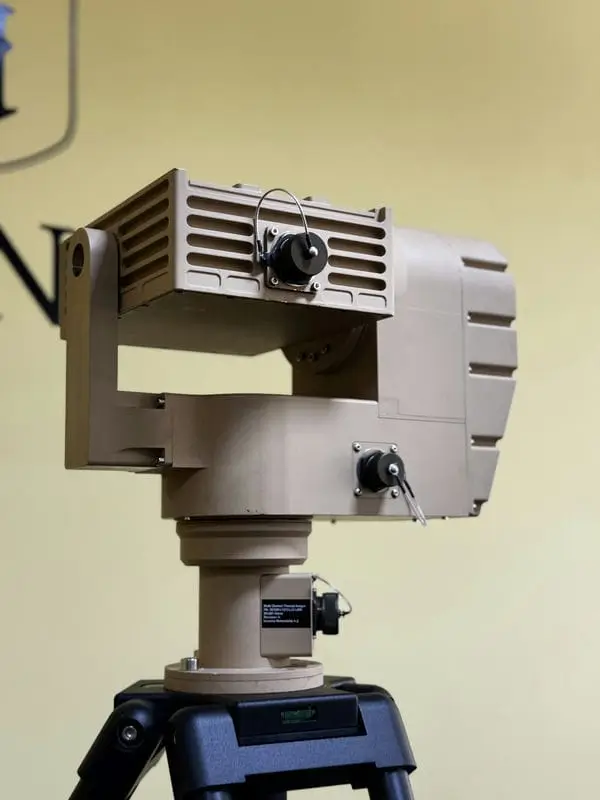

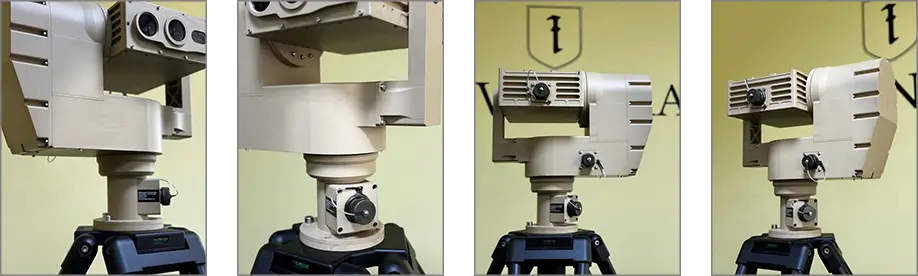

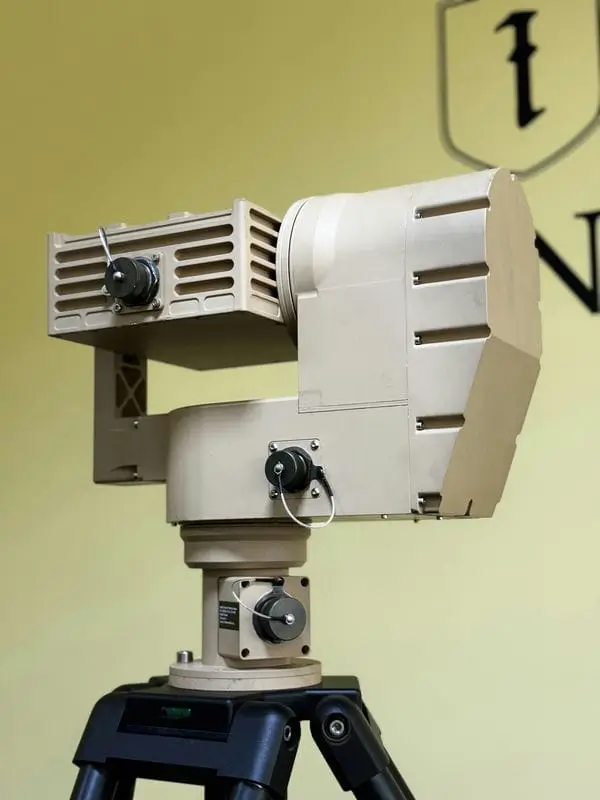

Our thermal imager is engineered to deliver pinpoint accuracy, making it the ultimate tool for guiding missiles in critical combat situations. Equipped with quad-channel capability, it allows simultaneous data acquisition and command through EO, LWIR, LRF, and Laser Designator channels. Offering sharp, clear imaging with 1080p full HD EO, a powerful 90x optical zoom, and 640×512 MWIR thermal sensors, this system ensures unmatched clarity and precision in all operational environments.
Precision Targeting and Missile Guidance: The thermal imager’s state-of-the-art technology enables precise targeting and tracking, making it an invaluable tool for designating targets and guiding missiles with exceptional accuracy and precision.
Extreme Durability: Engineered to endure the most challenging environments, the thermal imager is built to withstand harsh conditions. Its rugged construction ensures reliability, making it an essential component for any weapon system.
Quad-Channel Functionality: With quad-channel capabilities encompassing EO (electro-optical), LWIR (long-wave infrared), LRF (laser rangefinder), and Laser Designator, the thermal imager facilitates simultaneous data acquisition and command.
Our thermal imager is engineered to withstand even the harshest conditions, ensuring that it is a reliable and essential tool for any weapon system.
A. Quad-Channel Functionality
B. Precision Targeting
C. LRF & Laser Designator
D. 640×512 MWIR Thermal Sensor
Specifications
| Parameters | L0612 | L1212 | M0615 | M1212 |
| Resolution | 640×512 | 1280×1024 | 640×512 | 1280×1024 |
| Spectral Range (μm) | LWIR (8~14 μm) | MWIR (3.7μm±0.2μm – 4.8μm±0.2μm) | ||
| Pixel Size (μm) | 12 | 12 | 15 | 12 |
| NETD (mK) | ≤30 | ≤50 | ≤15 | ≤20 |
| Lens (mm) | 30-150 | 30-180 | 15-300 | 37.5-750 |
| Optical Zoom | 5X | 6X | 20X | 20X |
| FOV (Narrow End) (°) | 2.93° x 2.35° | 4.89° x 3.91° | 1.83° x 1.47° | 1.17° x 0.94° |
| Parameters | E90 | E68L | E50UL | E30 |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Lens (mm) | 6-540 | 6-408 | 6-300 | 4.3-129 |
| Optical Zoom | 90X | 68X | 50X | 30X |
| FOV (°) | 65.2°-0.8° | 66.0°-1.0° | 61.9°-1.3° | 63.7°-2.3° |
| Min. Illumination | Standard 0.01 Lux |
Low Light 0.005 Lux |
Ultra Low Light 0.001 Lux |
Standard 0.1 Lux |
| Parameters | L32 | ||
| LRF Ranging Scope (m) | 5-32000 | ||
| LRF Wavelength (μm) | 1.5 | ||
| Parameters | LD050 | ||
| LD Pulse Codes | STANAG 3733 I&II | ||
| LD Pulse Width (ns) | 10-25 | ||
| LD Wavelength (μm) | 1.064 | ||
| LD Output Energy (mJ) | >50 mJ | ||
| Parameters | SEB20-X-X-L32-L050 | ||
| Accuracy with Positioner (μrad) | Stabilization Accuracy <50 | ||
| Positioning Accuracy <100 | |||
| Operating Voltage (V) | 20-32V | ||
| Video Output | HD-SDI, Ethernet | ||
| Communication to the Unit | RS-422 | ||
| Width (A) (mm) | 325 | ||
| Depth (B) (mm) | 360 | ||
| Height (C) (mm) | 155 | ||
| Weight W/O Positioner (kg) | 18.4 | ||
| Data Refresh Rate (Hz) | 25 Hz | ||
| Output Lag (ms) | <100 ms | ||
| Stabilization | Fiber Gyro and Encoder Based Dual Loop Stabilization | ||
| Target Size (pixels) | 16×16 ~ 128*128 | ||
| IP Rating | IP65 | ||
| Temperature (°C) | MIL-STD-810G, Method 502.5 Procedure II – Operational, -32°C
MIL-STD-810G, Method 501.5 Procedure II – Operational, +60°C MIL-STD-810G, Method 501.5 Procedure I – Storage; +70°C MIL-STD-810G, Method 502.5 Procedure I – Storage; -40°C |
||
| Vibration | MIL-STD-810G, Method 514.6 Procedure I Category 20, Figure 514.6C-3 | ||
| Shock | MIL-STD-810G, Method 516.6 Procedure I Functional Shock, 40g 11ms | ||
| Humidity | MIL-STD-810G, Method 507.5 Procedure I; %90 Noncondensing | ||
| Rain | MIL-STD-810G, Method 506.5 Procedure I – Rain | ||
| Salt Fog | MIL-STD-810G, Method 509.5, 2 Cycles of 24 Hours Salt Fog and 24 Hours Desiccation | ||
*Refer to Datasheet
Ordering Information
| Configuration Breakdown | Sensors – Electromechanical – Box Type – 20 (Product Class) – Thermal Imager – EO Camera – Laser Range Finder – Laser Designator – Customization Codes |
| Part Number | SEB20-X-X-L32-L050 (Check Available Options Below) |
| Available Customizations | Laser Designator Output Energy and Beam Divergence, LRF Distance, Optical Zoom, Communication Protocol, Output Speed, FOV, Video Output Format, Mechanical Interfaces |
| Combinable Sub-Platforms | PED10 – Ultra Precision Electromechanical Pan-Tilt |
