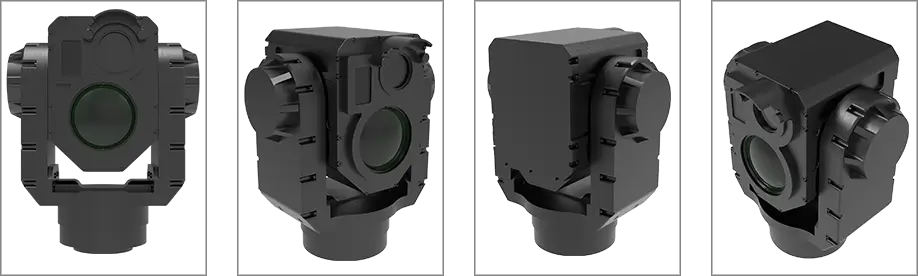

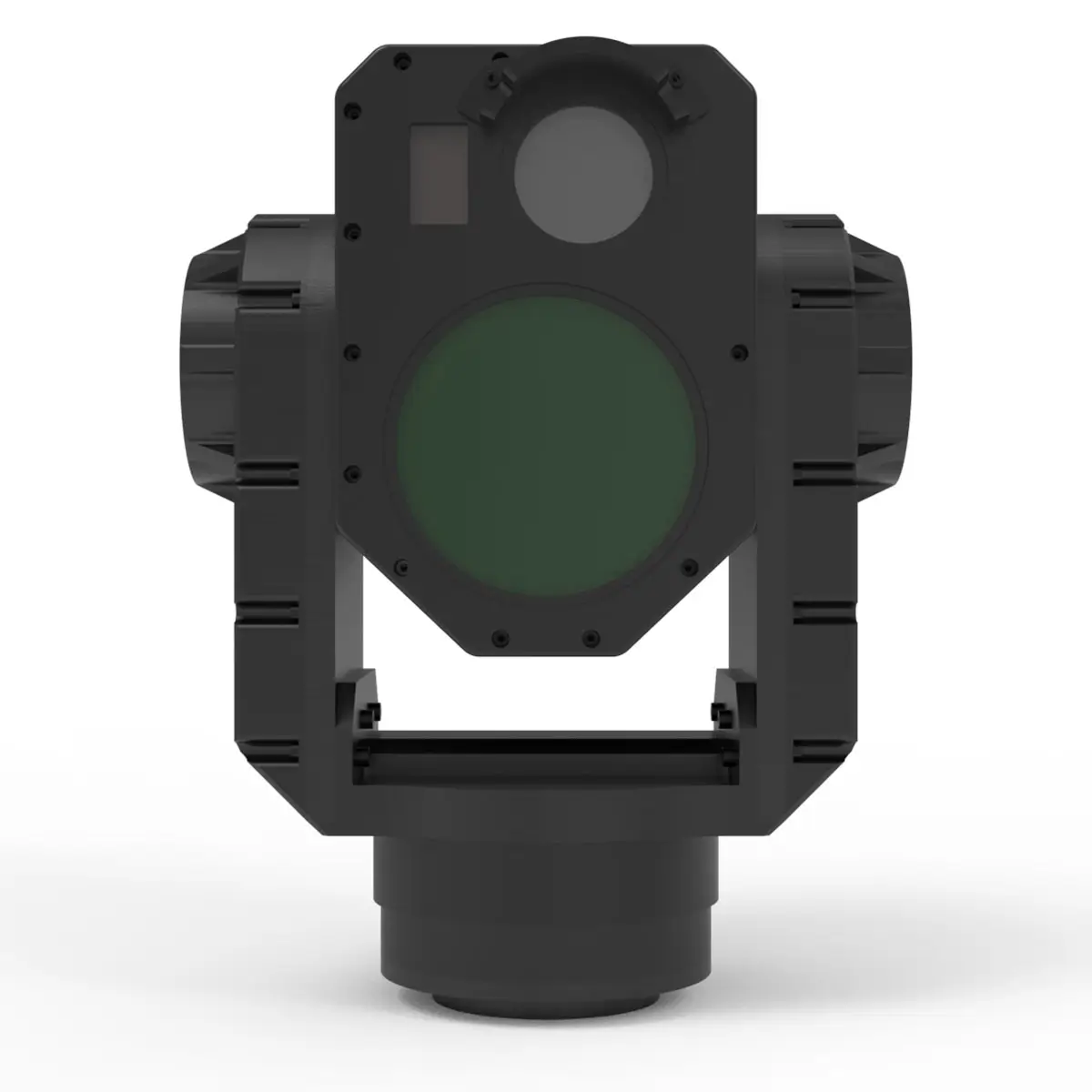

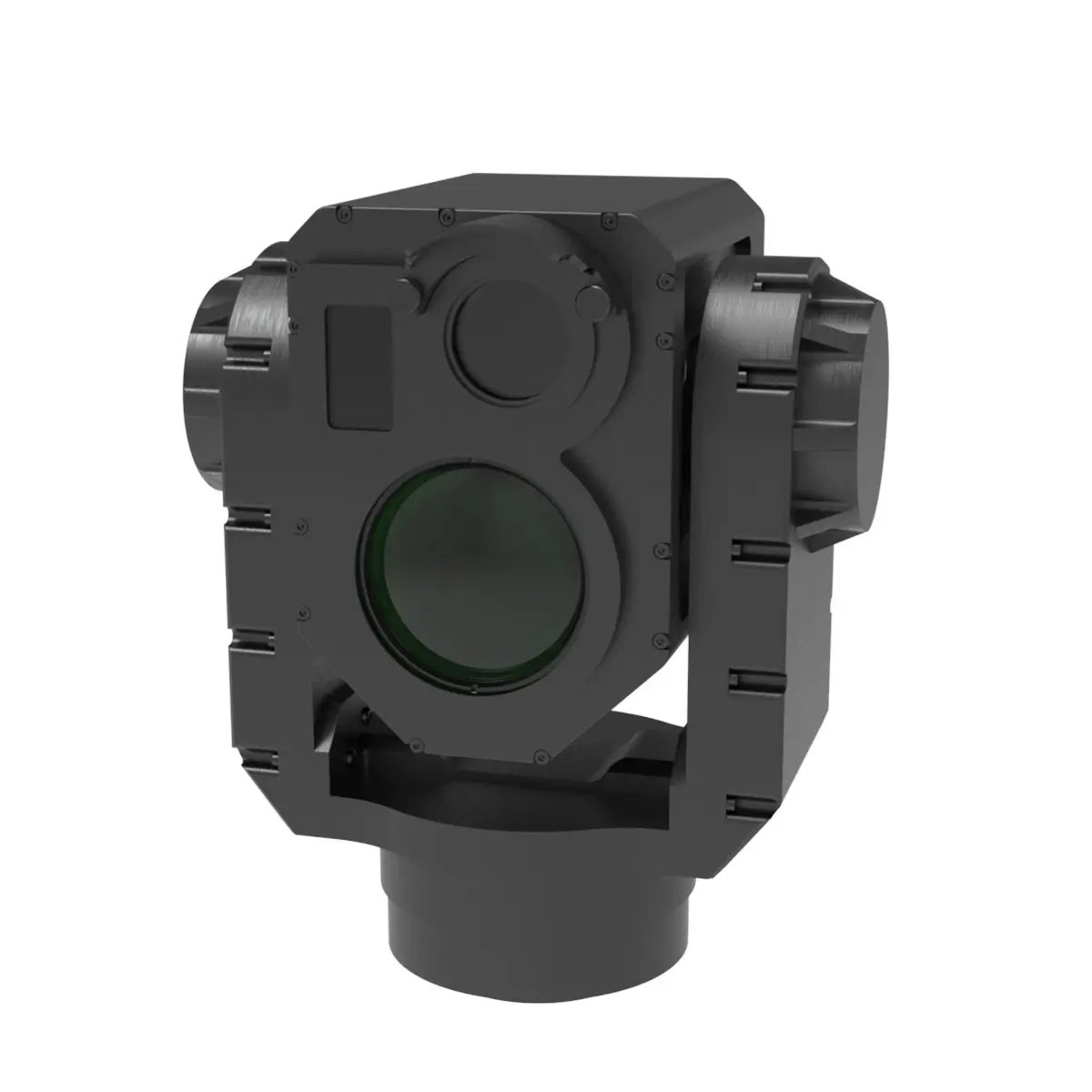

Tepegoz SEG14 is a cutting-edge multi-channel gimbal system that combines 1080p 30x optical zoom EO Camera, 640×512 LWIR thermal imager and long range laser range finder. It delivers precise, stable imaging and tracking, supported by advanced motor control technology for military applications. Integrated with brushless motors and advanced servo drive technology, it delivers precision control at ±0.01° while providing clear imaging through 30x optical zoom and thermal sensors.
Distinctive Features The gimbal provides a sharp and clear image through its 1080p full HD EO sensor with 30x optical zoom, coupled with a 640×480 LWIR thermal sensor. Simultaneously displaying thermal and day sensors on a single screen enhances situational awareness. The 2-axis stabilization ensures the gimbal can effectively lock onto and track moving targets.
Triple Channel Acquisition: Real-time data from EO, LWIR, and LRF channels for comprehensive surveillance.
True Servo Drive Control: Achieves exceptional control precision using brushless motors and high-resolution encoders.
Digital Image Blending: Seamlessly combines thermal and EO data into a single video feed for enhanced situational awareness.
Long-Range Laser Range Finder: Effective up to 12,000 meters for precise targeting and distance measurements.
A. EO, LWIR, LRF Channels
B. 1080p EO with 30x Zoom
C. Supports 15 Payload Lines
D. Digital Image Blending
Specifications
| Parameters / Configurations | SEG14-L0612-E30-L12 | |
| Pan/Tilt Axis Speed (°/s) | 180°/s | |
| Pan/Tilt Axis Range (°) | Pan: 360° Continuous / Tilt: ±45° | |
| Communication to the Unit | RS-485 | |
| Operating Voltage (V) | 20-32 | |
| Power Consumption (Max) (W) | 150 | |
| Weight (kg) | <8.0 kg | |
| Video Output | HD-SDI | |
| Dimensions (mm) | 325 x 257 x 178 | |
| LRF Ranging Scope (m) | 5-12.000 m | |
| LRF Wavelength (nm) | 1500 nm | |
| Laser Pointer (nm) | 635 nm, Class 1 | |
| Wave Length (μm) | Long Wave | |
| Detector Pixels | 640 X 512 | |
| Pixel Size (μm) | 12μm | |
| NETD (mK) | ≤30mK @25°C | |
| Optical Zoom | 28 mm ~ 90 mm | |
| DFOV (°) | 19.92° @28mm ~ 6.26° @90mm | |
| Calibration | Shutter Calibration / Scene Calibration | |
| Stabilization | Two Axis IMU and Encoder Based Dual Loop Stabilization | |
| Output Lag (ms) | <100 ms | |
| Target Size (pixels) | 16×16 ~ 128*128 | |
| Resolution | 1920 X 1080 | |
| Lens | 30x Optical Zoom
f = 4.3mm (Wide) – 129.0mm (Tele) f1.6 – f4.7″ |
|
| Digital Zoom | 12x (360x With Optical Zoom) | |
| Focusing System | Automatic | |
| Horizontal Viewing Angle (H-FOV) (°) | 63.7° (Wide) – 2.3° (Tele) | |
| Temperature (°C) | MIL-STD-810G, Method 502.5 Procedure II – Operational, -32°C
MIL-STD-810G, Method 501.5 Procedure II – Operational, +60°C MIL-STD-810G, Method 501.5 Procedure I – Storage; +70°C MIL-STD-810G, Method 502.5 Procedure I – Storage; -40°C |
|
| Vibration | MIL-STD-810G, Method 514.6 Procedure I Category 20, Figure 514.6C-3 | |
| Shock | MIL-STD-810G, Method 516.6 Procedure I Functional Shock, 20g 11ms | |
| Rain | MIL-STD-810G, Method 506.5 Procedure I – Rain | |
*Refer to Datasheet
Ordering Information
| Configuration Breakdown | Sensors – Electromechanical – Gimbal – 14 (Product Class) – Thermal Imager (LWIR-640-12µ) – EO Camera (1080p – 30X) – Laser Range Finder – Customization Codes |
| Part Number | SEG14-L0612-E30-L12 |
| Available Customizations | Laser Range Finder, Communication Protocol, Output Speed, FOV, Video Output Format, Mechanical Interfaces |
| Combinable Sub-Platforms | MES01 – Ultra Compact Electromechanical Mast
MES10 – Locked Electromechanical Mast |
