TMH10 – Heavy Duty Tripod

Payload Capacity up to 300 kg with Rigid, Stable and V Design Architecture for
Long-Range Thermal Imaging Devices, Sensor Arrays and Surveillance Radars

MIL-STD 810H Certified

  • High 300 kg payload capacity

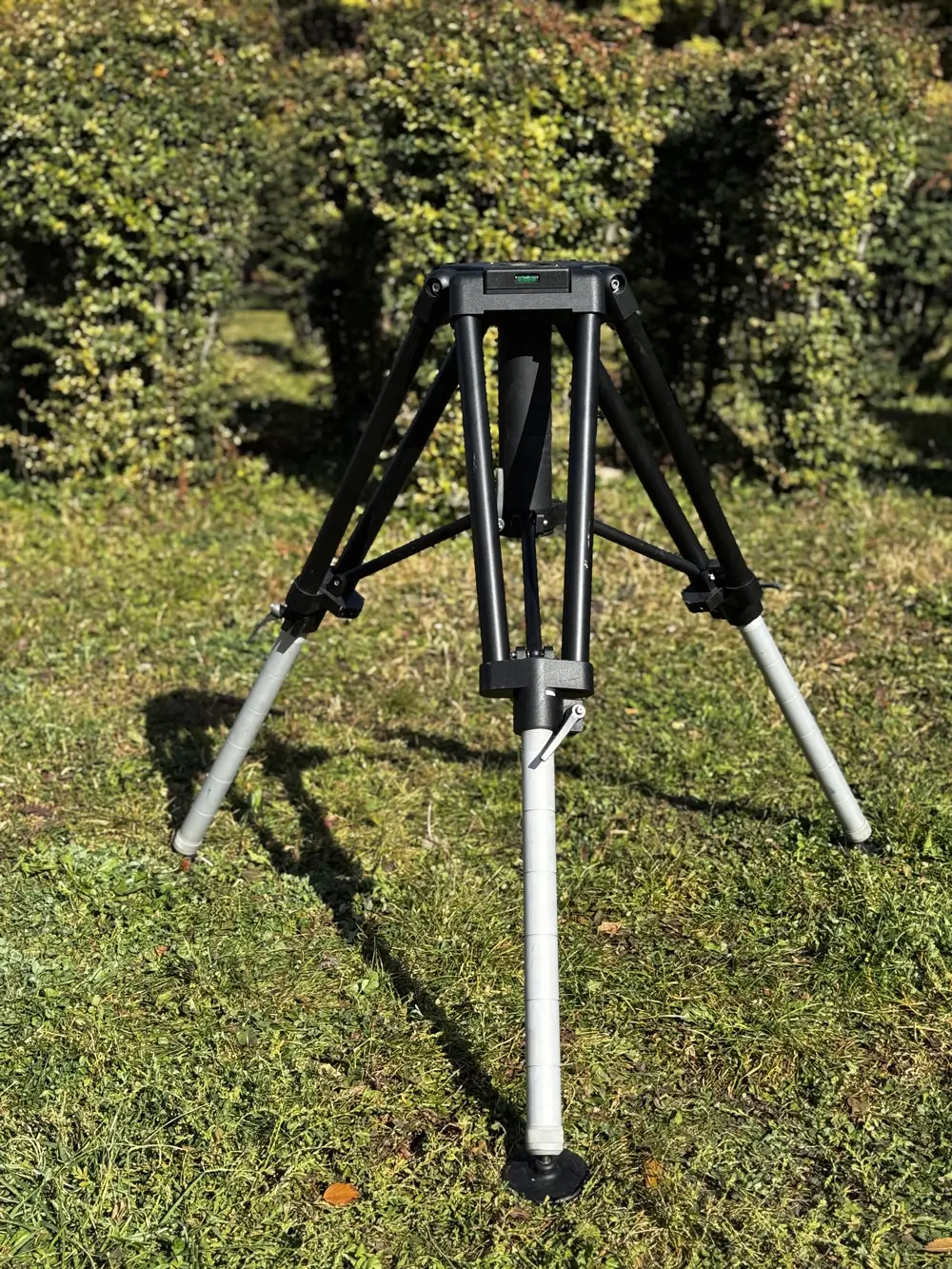

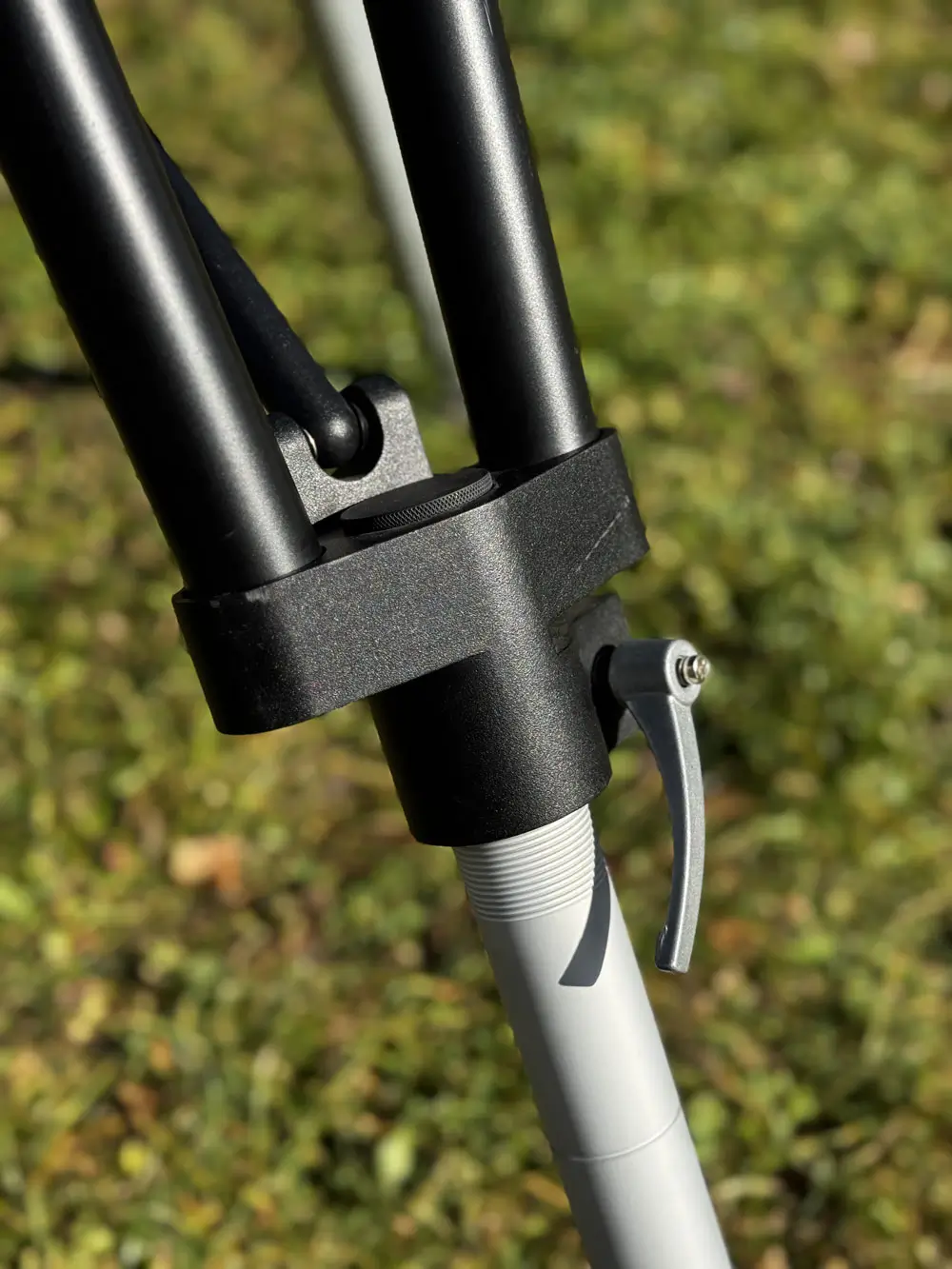

  • Flexible deployment with telescopic legs
  • Optimized for heavy military equipment
  • V design for ultimate stability
DATASHEET
Category:

Description

Main Features

The TMH10 durable tripod is designed for heavy-duty applications, supporting payloads up to 300 kg with exceptional torsional stability.
It features a wide working height range, independently adjustable telescopic leg lengths, and a rugged construction made of high-strength aluminum and corrosion-resistant steel.

Distictive Features

Stable Payload Support with V Mechanical Design: The TMH10 tripod unit stands out for its capability to support payloads with high stability, made possible by its unique V mechanical design architecture. This design enhances stability and reliability during various applications.

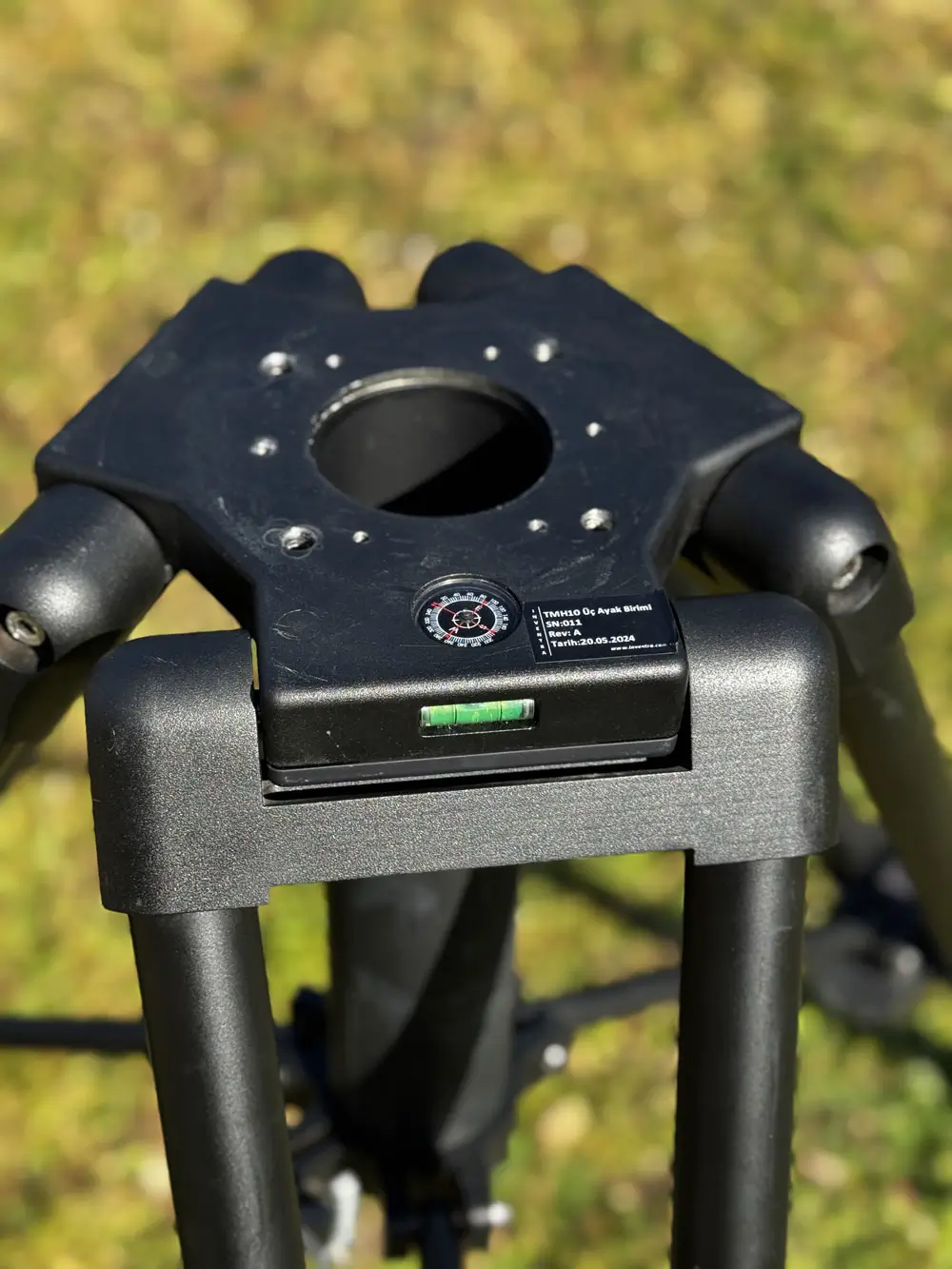

Low Twist and Deflection Performance Featuring a large center column structure, the tripod achieves low twist and deflection performance. This structural characteristic enhances its overall stability and precision, even when subjected to demanding conditions.

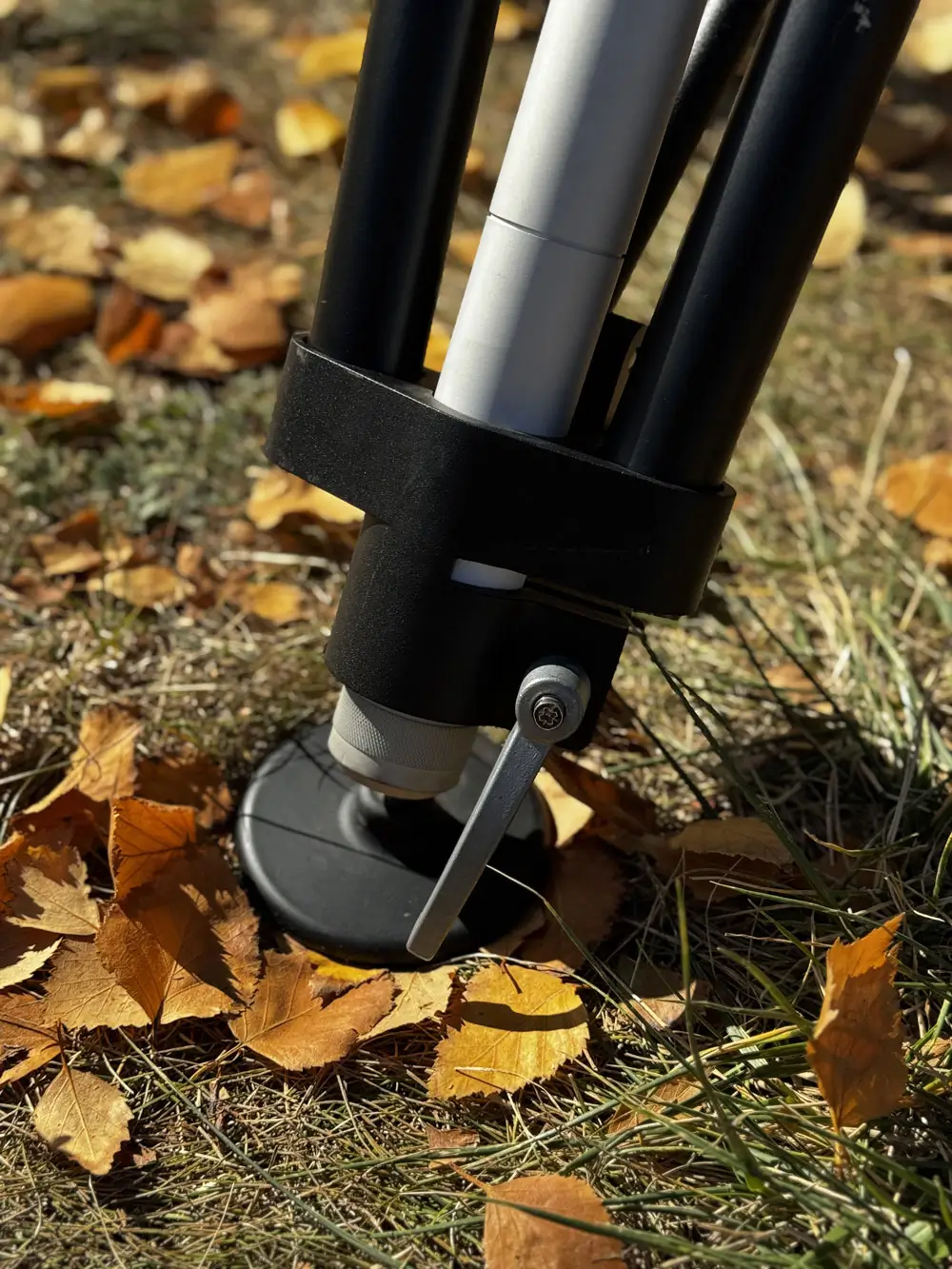

Versatile Foot Structure and Off-Center Payload Balancing: The tripod’s replaceable foot structure allows it to work effectively on various surfaces, enhancing its adaptability. Moreover, its large base diameter enables easy balancing of off-center payloads, ensuring stability during operations.

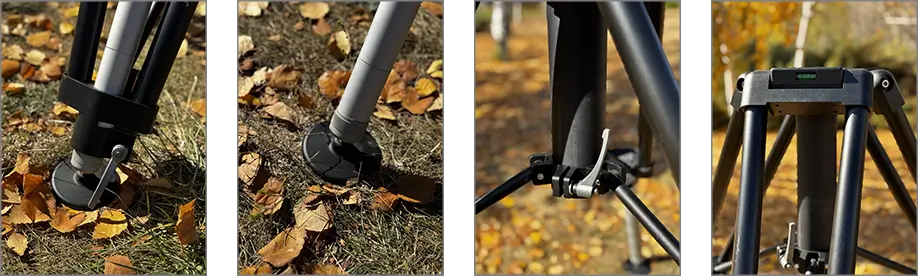

SEG10 Detay
A. V-Shaped Stability Design
B. Adjustable Height Range
C. High Payload Capacity
D. Corrosion-Resistant Construction

Specifications

Parameters TMH10-725-995-150 TMH10-1055-1250-150
Minimum Working Height (mm) 640 895
Extended Height (A) (mm) 995 1250
Extended Radius (B) (mm) 685 900
Tube Diameter – Top (C) (mm) 34.5 34.5
Tube Diameter – Bottom (D) (mm) 40 40

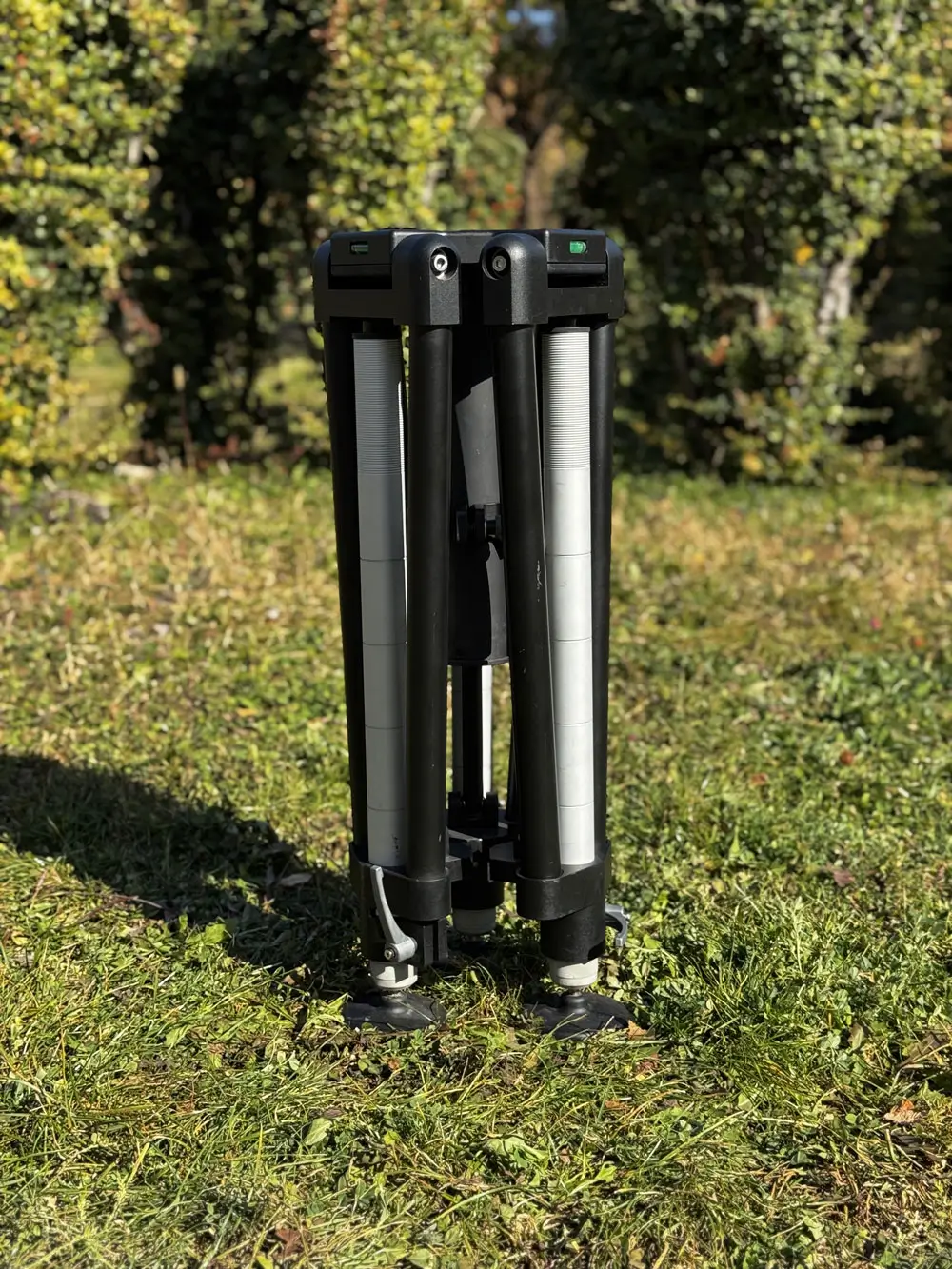

Retracted Height (E) (mm) 725 1055
Retracted Diameter (F) (mm) 280 280
Weight (kg) 14.7 18.4
Maximum Payload (kg) 300 300
Material Aluminum 6061-T6 / Stainless Steel AISI 316
Wind Load (km/h) 80 80
Temperature (°C) MIL-STD-810G, Method 502.5 Procedure II – Operational, -40°C

MIL-STD-810G, Method 501.5 Procedure II – Operational, +80°C
Vibration MIL-STD-810G, Method 514.6, 20-500Hz, 6dB/Octave Roll-Off
Humidity MIL-STD-810G, Method 507.4, Aggravated Humidity – Temperature Cycle, 10 Cycle (24 Hours)
Rain MIL-STD-810G, Method 506.5 Procedure I – Rain and Blowing Rain, 1.7 mm/h
Salt Fog MIL-STD-810G, Method 509.5, 2 Cycles of 24 Hours Salt Fog And 24 Hours Desiccation
Dust and Sand MIL-STD-810G, Method 510.5 Procedure I – Blowing Dusts

MIL-STD-810G, Method 510.5 Procedure II – Blowing Sand



*Refer to Datasheet



Ordering Information



Configuration Breakdown Tripod – Manual – Heavy Duty – Product Class (10) – Retracted Height (mm) – Extended Height (mm) – Rated Payload Capacity (kg) – Product Specific Codes
Part Number TMH10-X-X (Check Available Options Below)
Available Customizations Retracted/Extended Height, Payload Capacity, Mechanical Interfaces
Combinable Platforms PEX – Electromechanical Positioners Family

PMX – Manual Positioners Family
